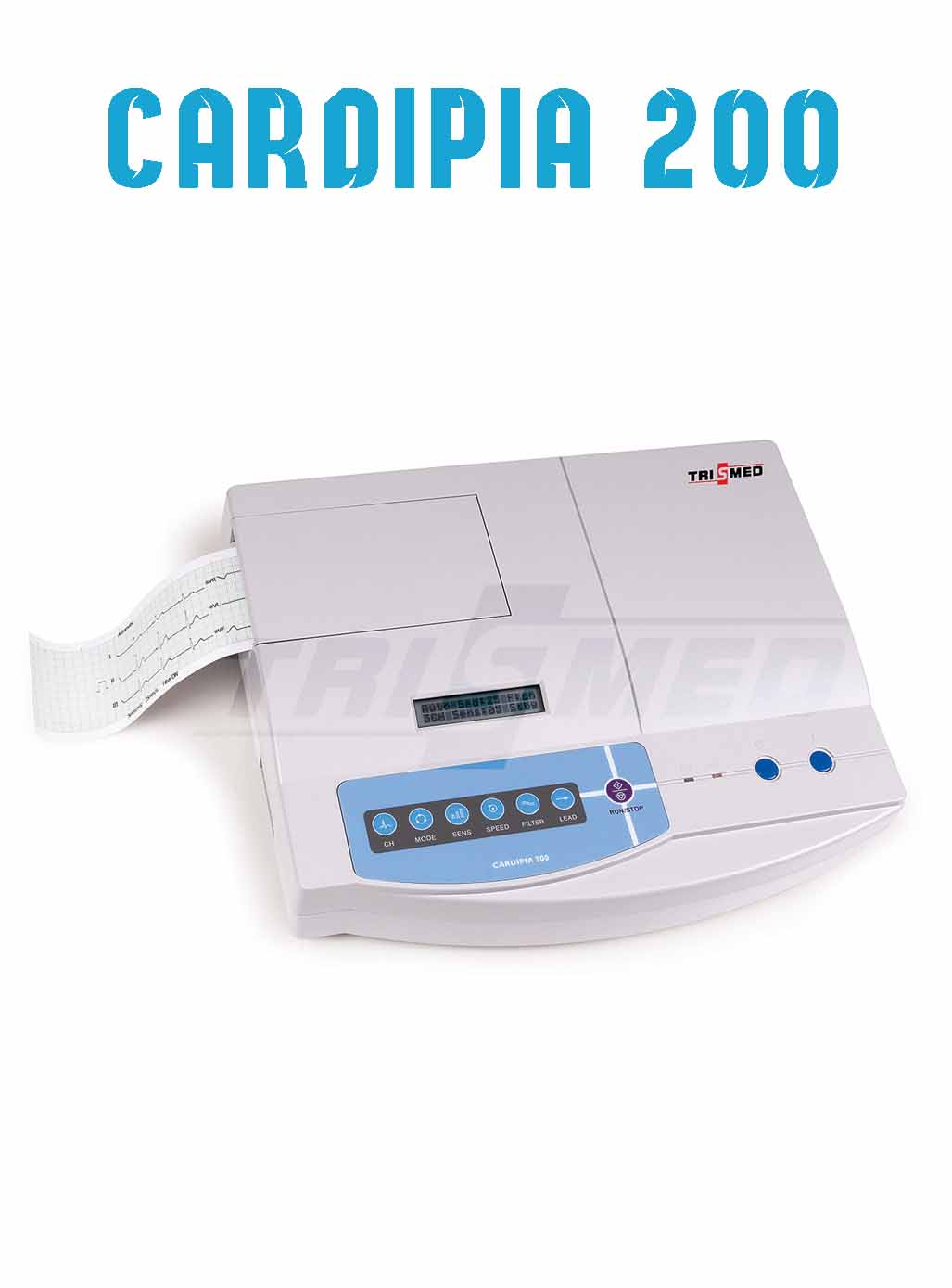

CARDIPIA 200

• 3/1-ch recording

• Measurement and Interpretation

• Cost effective ECG

• One touch automatic operation

• Clear and reliable ECG trace

• Optional PC Networking (Bluetooth/USB)

• Built-in rechargeable battery

• Easy paper loading and jamming free

• Internal Memory up to 1,000 patient data

• Remote Control 7 Export to Image Report via Android Application(Option)

• Stress ECG(Option)

Click Here for more Details

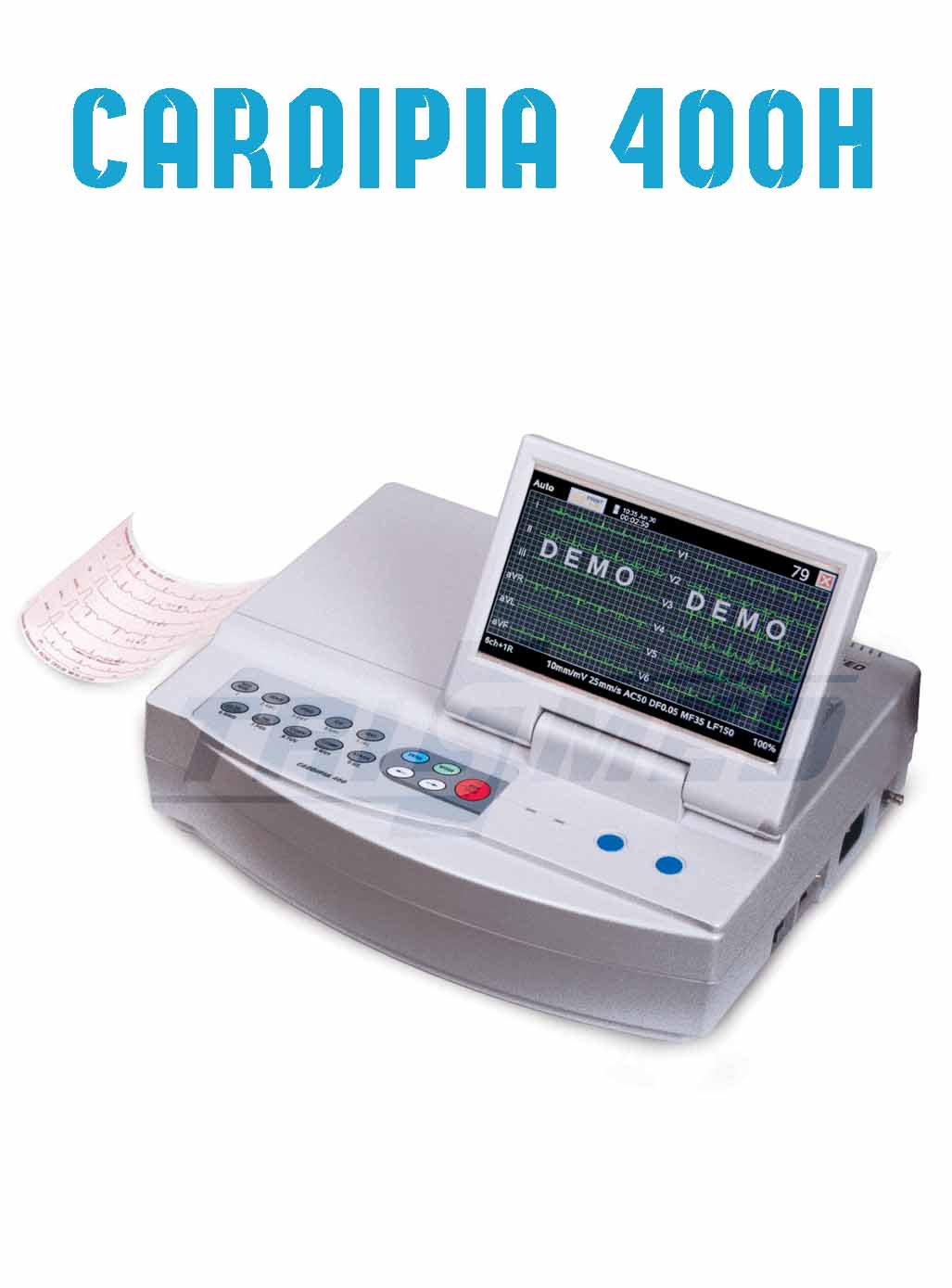

CARDIPIA 400H

• 12/6/3-ch recording

• 110 mm roll paper / Z-folder (option)

• 12/6/4/3/1-ch display

• 7”color LCD with touch screen

• Full disclosure record : max 10 min.

• Various HIS data format : HL7, XML, SCP, PDF

• Data memory : Internal SD card / external USB memory

• Data transfer port : USB(RS232), Ethernet LAN, Bluetooth

• External device I/F : External printer/ Barcode and Card reader

• Stress ECG I/F

• Easy remote S/W update by USB

• Folding LCD for view angle

• Real time ECG view on PCNet regulation on June, 2012.

Click Here for more Details

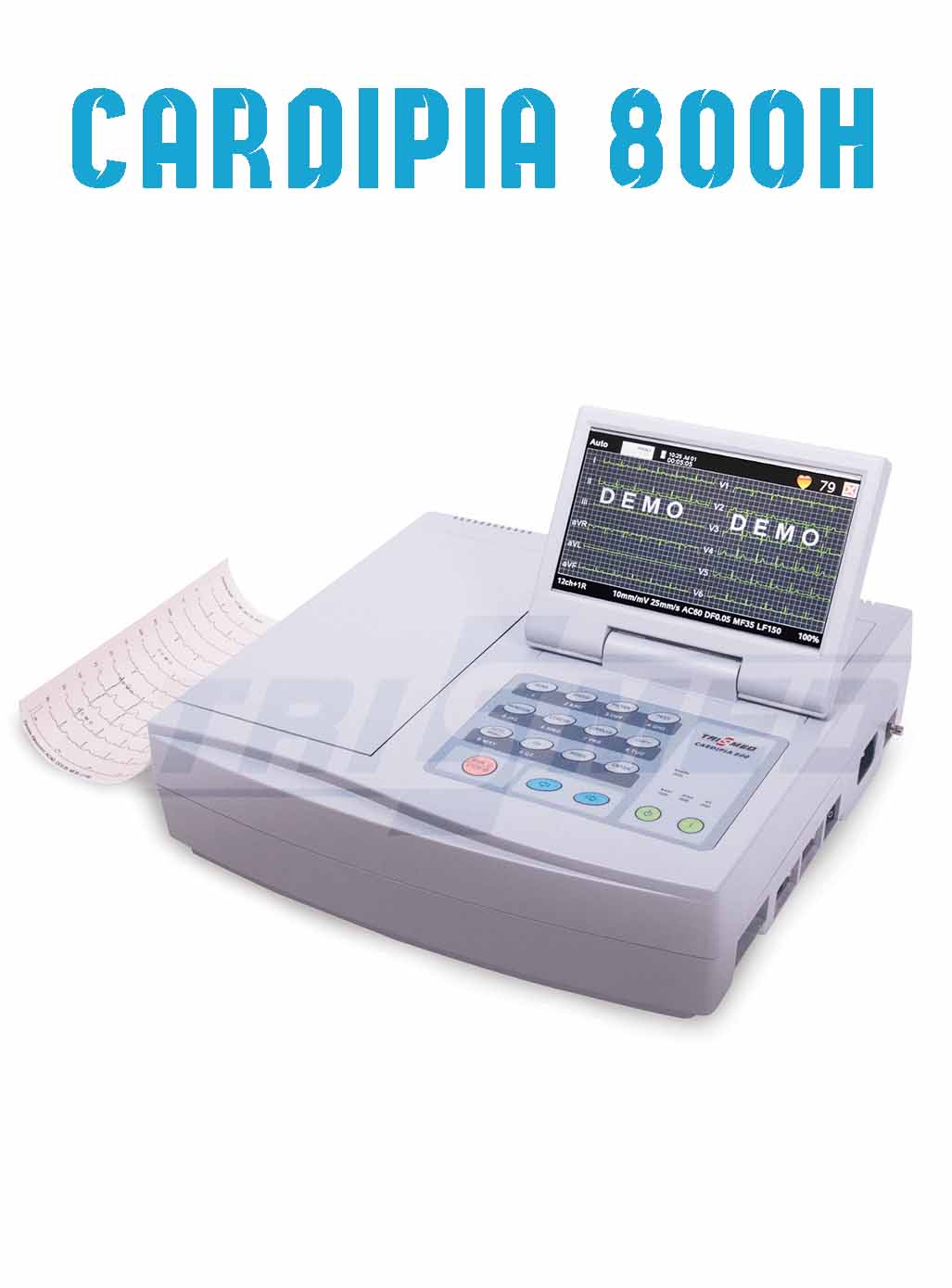

CARDIPIA 800H

• 12/6/3-ch recording

• 216 / 210 mm roll paper (Z-folder option)

• 12/6/4/3/1-ch display

• 7 ” color LCD with touch screen

• ECG measurement and interpretation (option)

• Full disclosure record (max 10 min.)

• Various HIS data format : HL7, XML, SCP, PDF DICOM(PACS)

• Data memory : Internal SD card / external USB memory

• Data transfer I/F : USB (RS232), Ethernet LAN, Bluetooth

• External device I/F : External printer/ Barcode and Card reader

• Stress ECG I/F (option)

• Easy remote S/W update by USB

• Folding LCD for view angle

• Real time ECG view on PCNet

Click Here for more Details

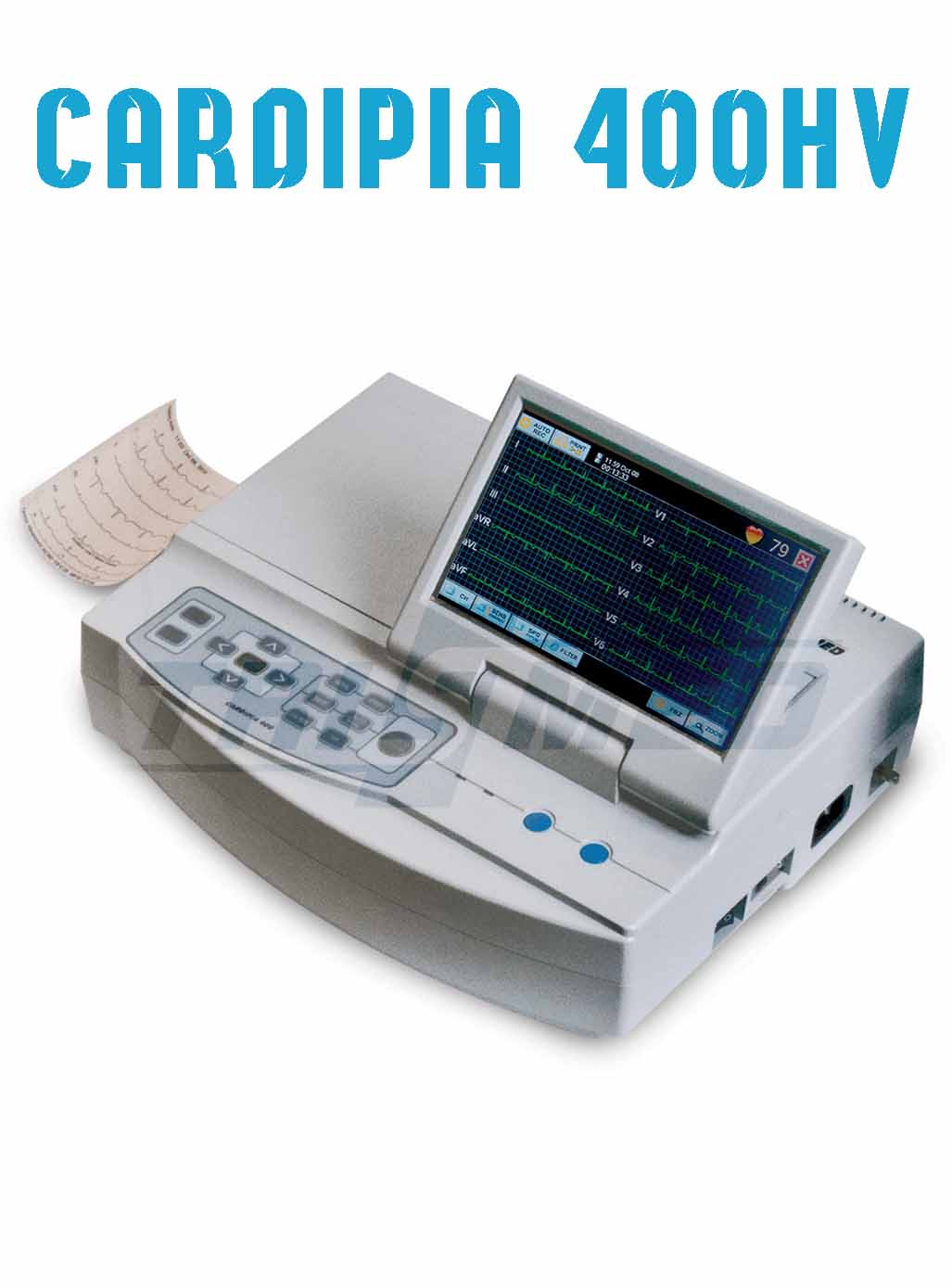

CARDIPIA 400HV

• Compact and light weight

• 4-lead patient cable

• Clear and reliable ECG trace

• Built-in rechargeable battery

• Certifred by IEC60601-1, 3rd edition to comply new safety regulation on June, 2012.

Click Here for more Details

VITAPIA 7000KV

• Standard Parameter : ECG, NIBP, SpO2, Temp, Resp.

• Fully portability with steam line handle

• High brightness 12.1” TFT color LCD

• Big figure display

• 72 hours review trend

• 480 hours review trend with external memory

• Built-in rechargeable battery

• Dimension (mm) : 310(L) x 140 (W) x 263 (H)

• Weight : 3.8 Kg

Click Here for more Details

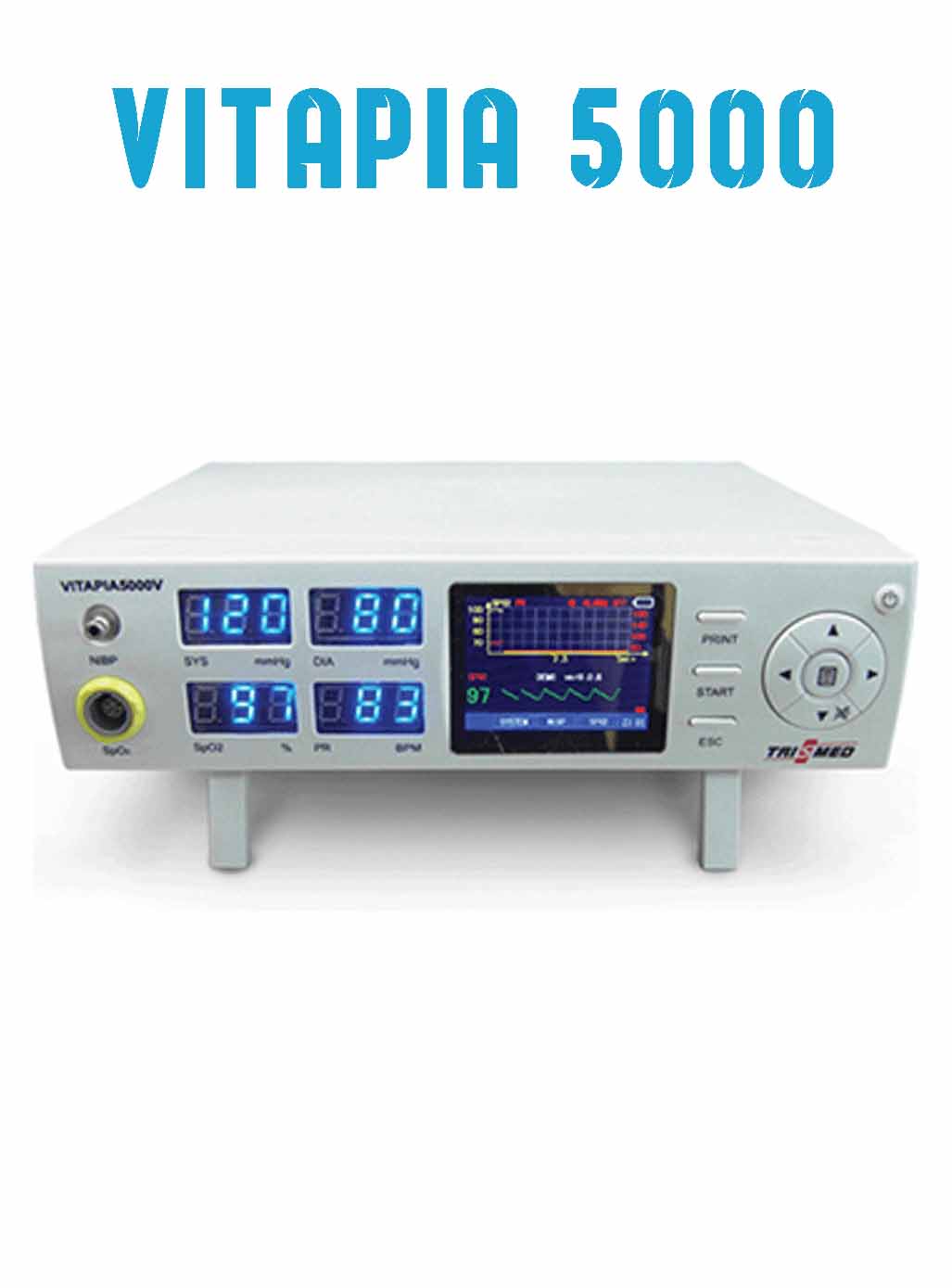

VITAPIA 5000

• Compact and potable with built-in battery

• 7 segment LEDs for systolic, diastolic, mean pressure, SpO2 and pulse rate

• 2.4”color LCD for waveforms, bar graphic, trend and system menu

• High bright LEDs display of NIBP, SpO2 and pulse rate

• High resolution color LCDs for trend tabular and SpO2 Waveforms display

• Manual / auto / continuous measurement of NIBP

• Adjustable audible and visual alarms

• Up to 2000 groups NIBP data storage or SpO2 up to 10 hours

• Suitable for adult, pediatric and neonatal patient

Click Here for more Details

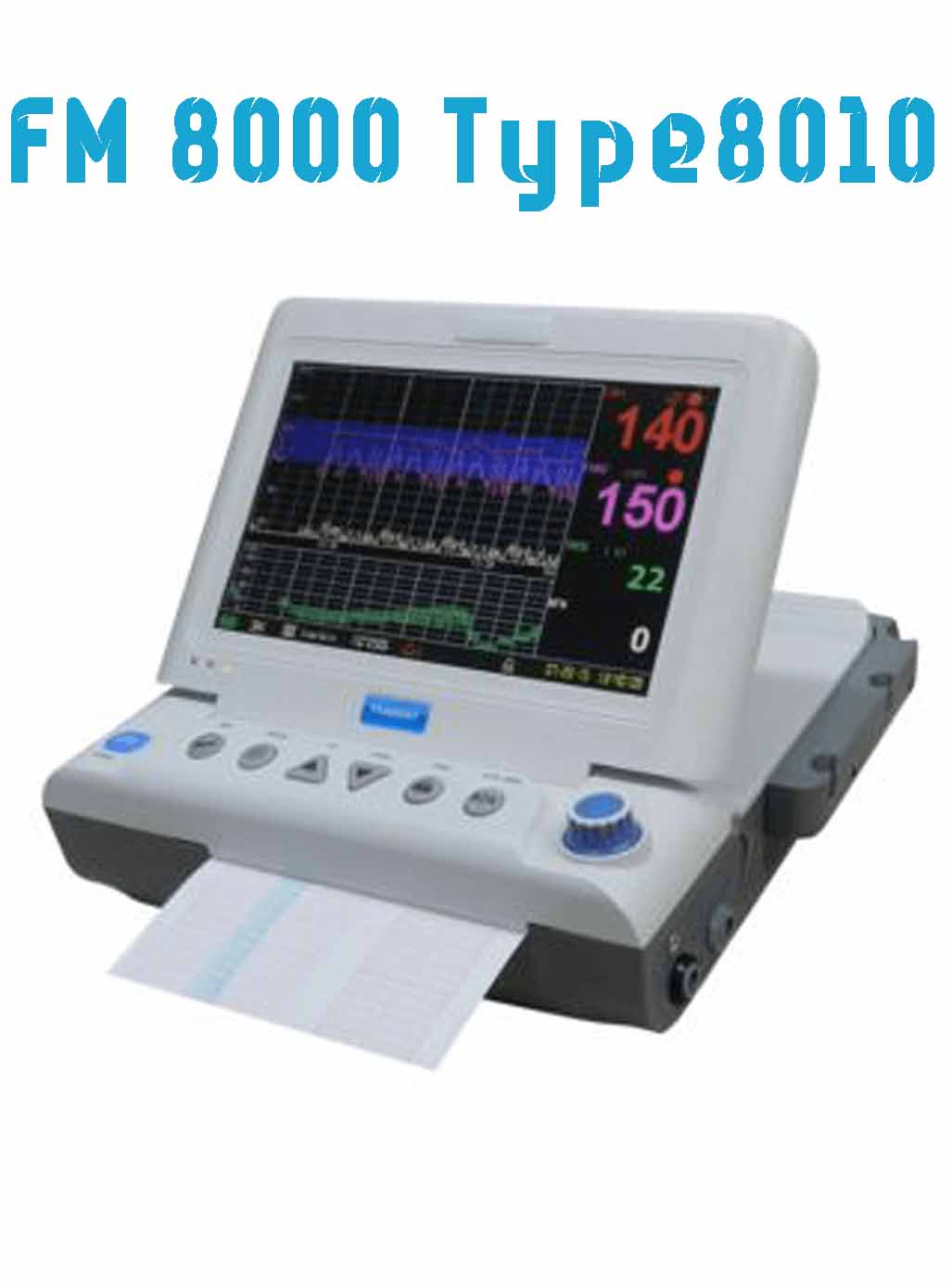

FM 8000 Type8010

• Color TFT folding color LCD : 10.2” color TFT folding LCD

• 9 crystal pulse wave Doppler transducer

• 152mm wide paper (US/International standard)

• Built-in rechargeable battery

• Accurate fetal movement detection and accounting

• Central monitoring interface

• Type8010 Options: Maternal SpO2, MHR, NIBP, Twin FHR,ECG, RR, Temp., FAS(Fetal Acoustic Simulator)

Click Here for more Details

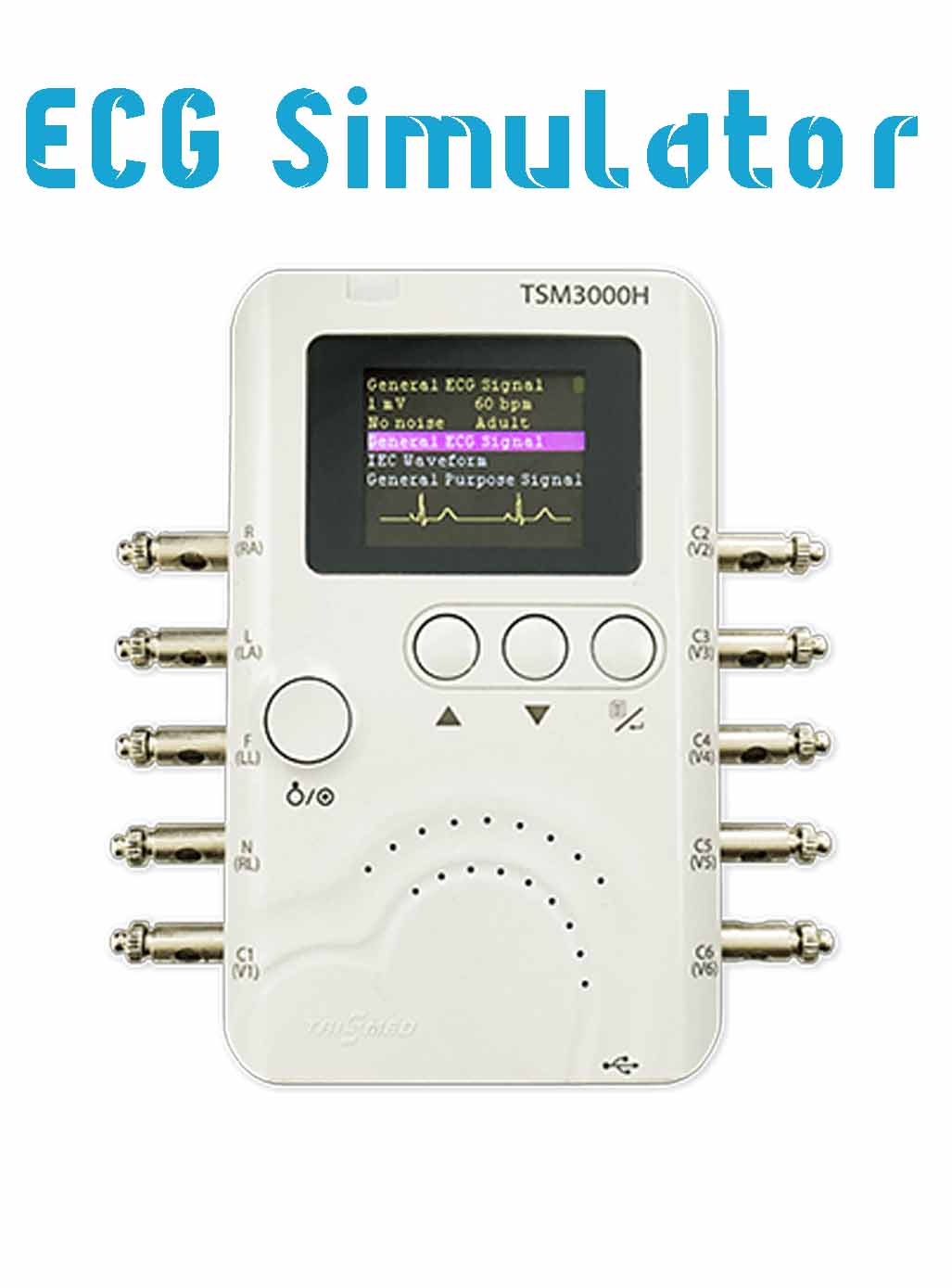

ECG Simulator

• High Performance ECG Simulator for IEC Standard.

• Compact and light weight.

• Rechargeable battery operation.

• Charging by USB Power.

Type TSM3000HS

• General purpose ECG Testing.

• Changeable heart rate, amplitude, patient type.

• (adult or pediatric) and the combined noise.

Type TSM3000HE

• Performance testing for ECG standard calibration.

• IEC Calibration and analytical signals including different arrhythmia signals.

• Sine and square wave generation.

Click Here for more Details

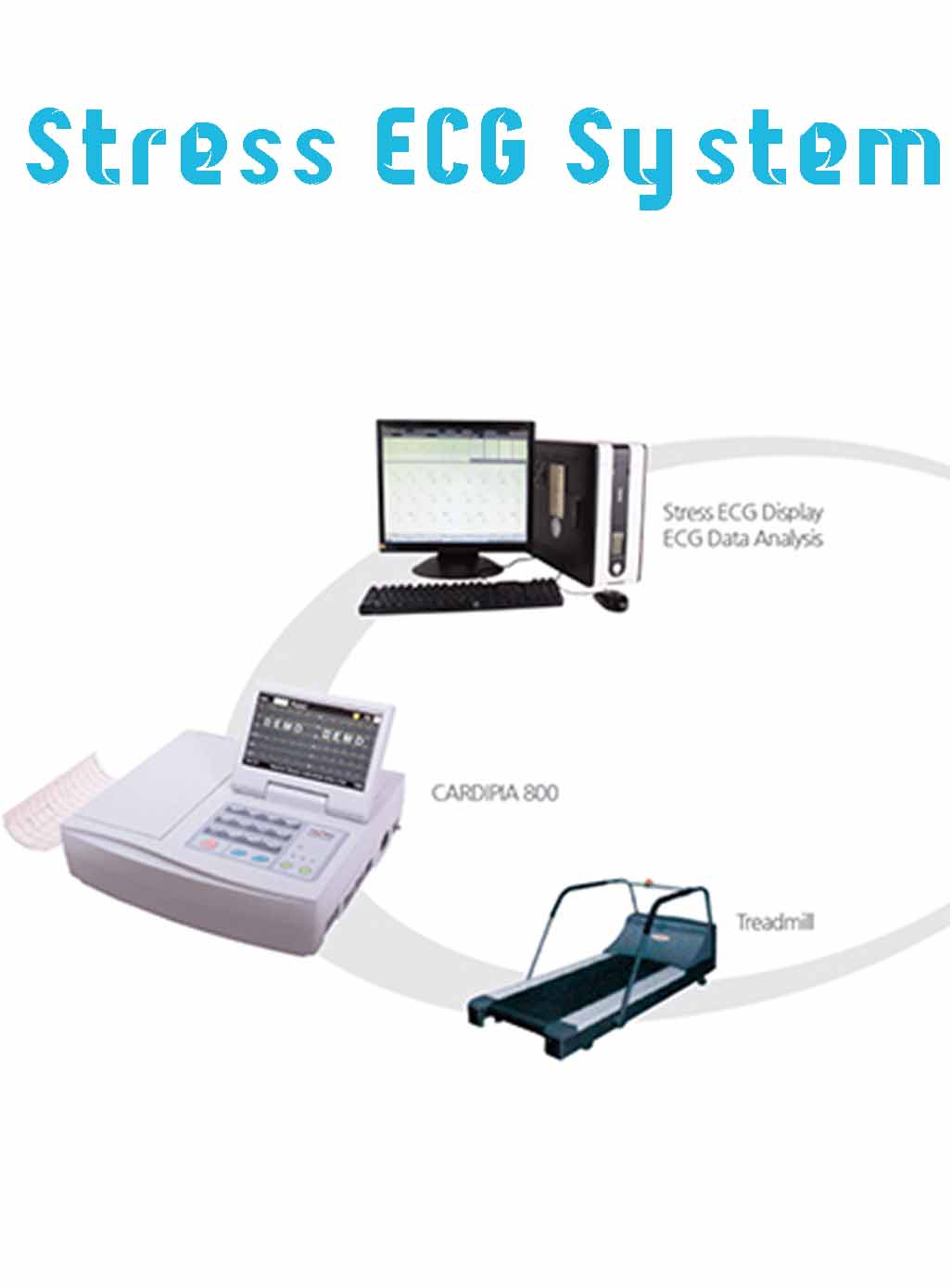

Stress ECG System

ECG acquisition module

CARDIPIA800H

• Cost effective stress ECG system

• ECG acquisition module with CARDIPIA ECG

• Real time ECG display on CARDIPIA ECG

• Easy operate CARDIPIA ECG with color and touch screen

Stress ECG S/W

• Automatic ECG analysis and ST measurement

• Automatic arrhythmia detection and alarm

• Copy or print analysis report

• Editing and creation treadmill protocol

ECG acquisition module

Treadmill / Ergometer

• Less maintenance and long life cycle

• Silent and smooth movement

• Maximum speed : 20 Km / hour

• Gradient : 25% (step 0.5%)

• Patient loading weight : max. 220kg

• Running belt : 1460 x 500 mm

• Motor : 3Hp

• Control : via RS232 (USB) / Bluetooth

Click Here for more Details

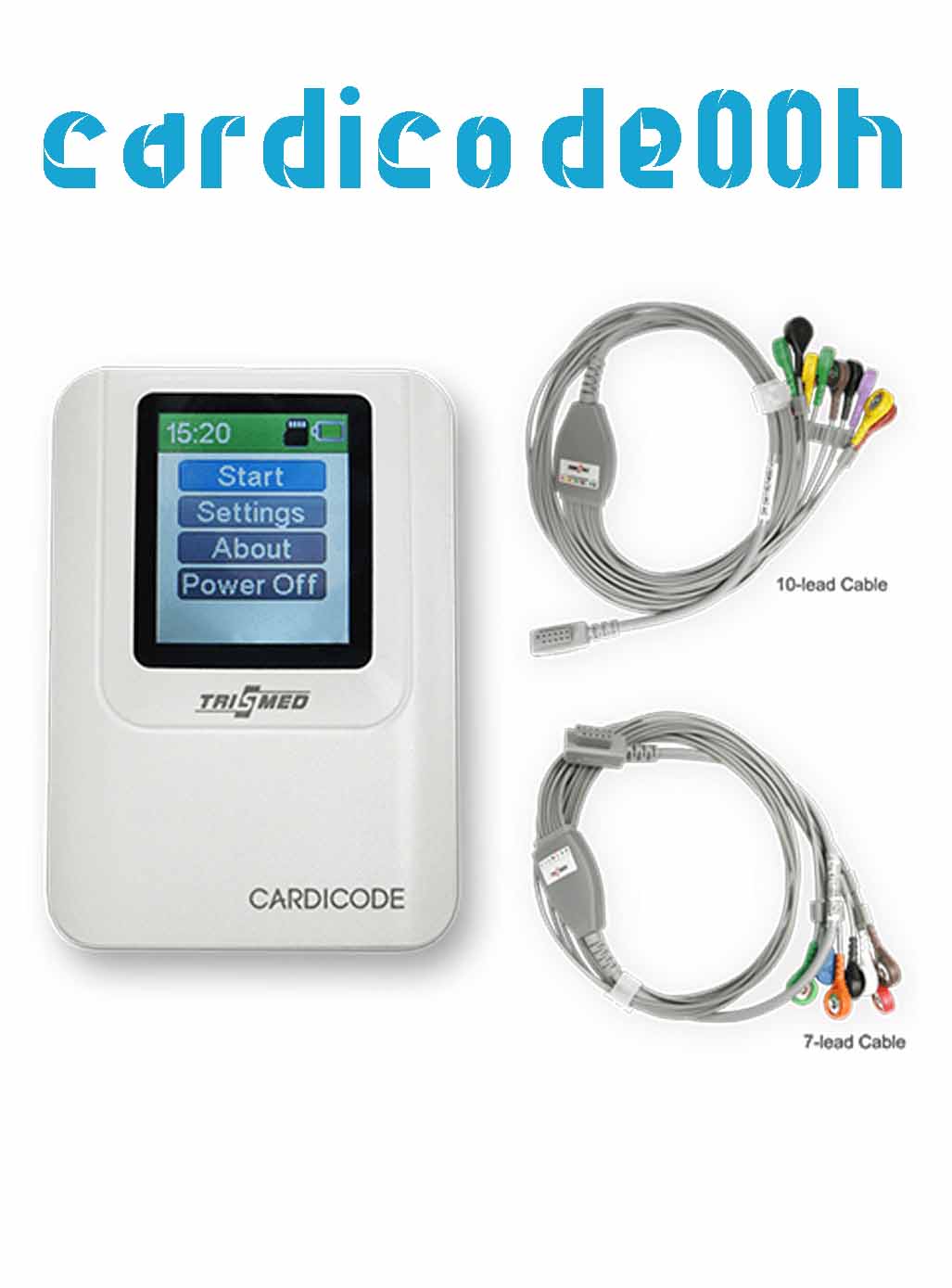

CARDICODE300H

• 12 or 3-ch selectivity

• Integrated into Cardioffice system for managing patients and studies database

• Export to proprietary and standard formats (DICOM, HL7, aECG (XML), ISHNE)

• Report to standard Printer and PDF,PNG and JPG files with the possibility of sending e-mail

• Built-In accelerometer sensor to record patient body position (option)

• On screen option for mark pauses on ECG recording

• Graphic tools for display high quality ECG waves

• Configurable sampling rate (250/500/1000)

• HRT analysis

• USB interface for setup new record and download data

• Pacer function analyzer

• HRV in time and frequency domains

• QT and Spatial QT Dispersion analysis

• Up to 72 hours of full disclosure recording

• Realtime ECG wave display during recorder configuration

• ST segment analyzer with ST episodes detection in all leads

• Weight : 80g (without battery)

• Size : 90.5(L) x 65(W) x 24(H)

Click Here for more Details

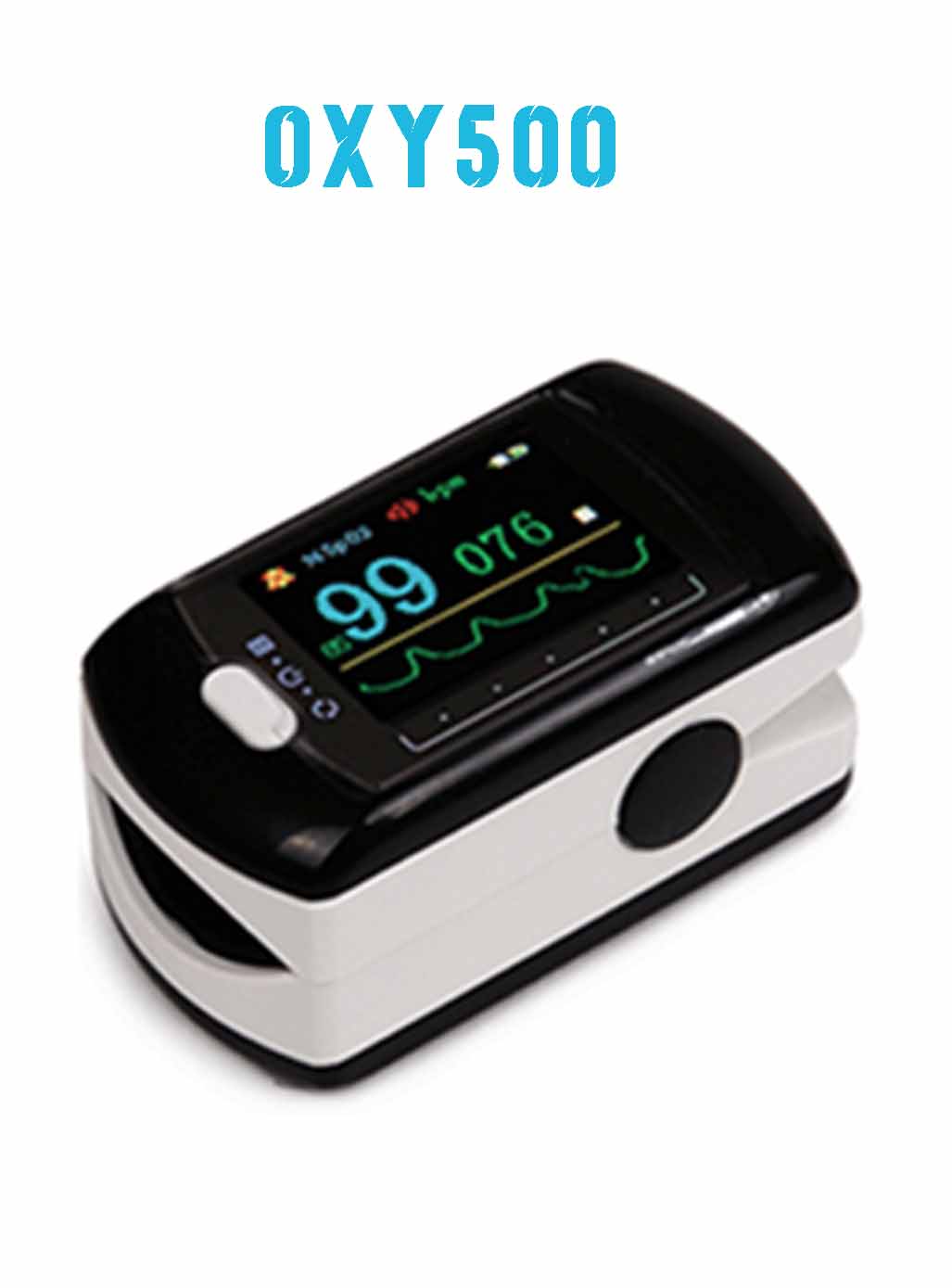

OXY500

• SpO2 measurement range : 0~100 %

• 160X 128dots, true color

• Color OLED with 4 direction display

• Visual and audio alarm (35~99 %)

• Pulse sound, pulse ratio (30~250 bpm)

• USB and wireless interface to PC

• Synchronous display on the oximeter and computer

• Data memory (30 hours)

• PC Software for sleep study and monitoring

• Battery voltage indication

• USB and AC battery charger

• SpO2 accuracy : ±2% in stage of 70%~100%

• Automatic power off with no finger for 4sec.

• 3.7V rechargeable lithium battery

• Dimension (mm) : 57(L) x 32(W) x 30(H)

• Weight : 50g

• Including lithium battery x 1
